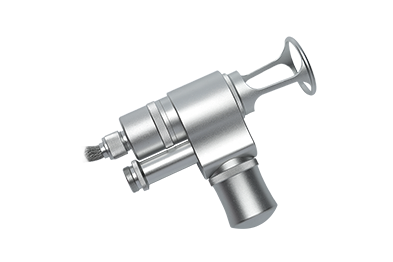

js1505 cosmetic galvanometer system is the company's new research and development of high-performance medical beauty vibrating mirror, , with small volume, light weight, fast speed, flexible operation and other characteristics. and it has the independent intellectual property right.
the advantages are as following:
■ the scanner hand-piece designing was adopted smaller size, light weight, especially suitable for ergonomic design hand-held laser system.
■ it was equipped with 2 high-performance mini motors, adopted the imported optical sensors to ensure high scanning speed and good stability.
■ with fault self-checking function, reliable error signal output can fully ensure the high security of the scanner.
■ with friendly software interface, parameter memory function.
■ with several preset operation modes, modular design, easy to operate.
■ square, circle, triangle, hexagon, straight line and other graphics are optional for scanning mode, the size of axis x and axis y can be adjustable separately.
■ with image shoot and automatic outline extraction function, in combination with hand drawing and adjusting, provide more accurate treatment of object area.
■ with accurate scanning size, beam spot density, power controlling.
■ laser power and indicator brightness can be calibrated.
■ standardized cables connection interface, easy to connect with control system, and also we can provide customers with specially designed control system.
js1505 technical parameters
motor specification
working temperature | 0-45℃ |
linearity | 99.9% |
setting time | ≤0.4ms |
scale drift | 40ppm/℃ |
zero drift | <15μrad./℃ |
long-term drift over 8 hours | <0.5mrad |
rms current | 2.0a |
peak current | 10a |
maximum scan angle | ±15° |
storage temperature | -10 to 60℃ |
resolution | 12μrad |
repeatability | 8μrad |
input aperture | 5.0-7.0mm |
beam displacement | 10.7mm |
motor weight | 38.0g |
frequency (scan angle < 1° mechanical angle） | ≤800hz |
servo driver board specification
input voltage(max.rms) | ±15vdc |
interface signals(analog) | ±5v |
fault signal output(ttl level) | h for galvo working normally l for galvo working failure |
analog signal input resistance | 200kω±1% |
position signal input resistance | 1kω±1% |
position signal input scale factor | 0.33v/° |
position signal output scale factor | 0.33v/° |
working temperature | 0-45℃ |
dimension(l×w×h) | 75×50×28mm |
